Choosing a topcoat lacquer for PVC-coated fabric

Three topcoat chemistries cover the PVC-coated fabric market: acrylic, polyurethane, and PVDF. The choice follows the service life required, the welding method, and whether the line runs solvent or water.

The PVC coating supplies the strength and the barrier. The topcoat decides how the surface behaves and how long the assembly lasts outdoors. This is the selection sequence, in the order that settles a specification without a second round of samples.

The four jobs a topcoat does

A lacquer on a PVC-coated polyester fabric carries four requirements at the same time, and a grade is chosen against all four rather than against whichever one prompted the call.

Weather and UV resistance. Outdoor service is the reason most of these fabrics are lacquered at all. The topcoat takes the sunlight, the rain, and the thermal cycling that would otherwise land on the PVC.

Plasticizer barrier. PVC coatings are heavily plasticized, and plasticizer migrates toward the surface over time. As it arrives it makes the surface tacky, holds dirt, softens print, and weakens adhesion at the lacquer interface. A barrier topcoat slows the migration. It does not stop it, and any grade selection that assumes otherwise will be disappointed at year three.

Soil resistance and cleaning. A truck cover, an awning, or a membrane roof is judged on how it looks after several years of weather, and that is a surface property. Low surface energy, a tight film, and resistance to whatever the cleaning crew uses all sit with the lacquer.

Weldability. In most cover and tarpaulin applications the finished goods are fabricated by welding, so the lacquer has to remain suitable for it. The film ends up inside the weld zone, which is why this belongs in the specification rather than in the trial report.

Acrylic, polyurethane, or PVDF

The three families divide cleanly by end use.

Acrylic. The volume topcoat, and the default unless something in the application argues otherwise. It covers truck covers and curtain-side material, awnings, halls and tents, backlit, frontlit and side-curtain print media, PVC roofing membrane, tablecloths, book covers, pool liners, and PVC synthetic leather, in matt, semi-gloss, and gloss. Solids across the acrylic range run from roughly 13 to 46 percent. Two-component acrylics are also the base of the anti-graffiti and easy-clean systems.

Polyurethane. Specified where the surface is touched or heard. That means PVC synthetic leather and automotive interior foils, where mar resistance, a matt surface, hand feel, and anti-squeak behavior are written into the specification. Solids sit between about 18 and 22 percent, with waterborne grades available across the range.

PVDF fluoropolymer. Specified where outdoor life and soil resistance drive the decision: architectural and tensile membrane, halls and tents, premium pool liners, and automotive foils that have to resist heat yellowing. Solids run from about 11 to 22 percent. PVDF is also the family that comes as a two-layer system, a UV protection primer under a matching topcoat, which is how long-life membrane is built.

A fourth group sits slightly apart. Transfer-coating topcoats for PVC synthetic leather are applied to release paper and transferred onto the substrate rather than coated directly onto it, at roughly 20 to 28 percent solids, in solventborne and waterborne form. If the line runs release paper, that is the group to ask for.

Grade codes carry a W when the grade is waterborne. Prefix letters are lacquer codes and do not indicate chemistry; the family name does that.

What the solids number tells you

Solids is the non-volatile fraction of the lacquer, so it sets how much dry film each pass leaves behind and how much solvent or water the oven has to remove. Across these families it runs from about 11 percent at the thin end to about 46 percent at the heavy end.

A higher solids grade builds film faster and puts less load on the drying section. A lower solids grade flows out thinner, which is what a very light finish over a printed or embossed surface needs. Solids on its own does not give you coating weight: application method, wet film thickness, and line speed decide that, and two grades at the same solids can land at different add-on on the same line.

One component or two

One-component lacquers dry physically and are ready to run as supplied. There is no pot life to manage and no mixing step, and for most tarpaulin, awning, and print media work they are the specification.

Two-component systems crosslink, and that is where the higher scratch, solvent, and chemical resistance comes from. The crosslinker is specified with the lacquer at a stated addition level, typically around 2 to 3 percent, because the published resistance figures only apply with the matching catalyst at that level. Treating the crosslinker as a separate purchasing decision is how a 2K system ends up performing like a 1K one.

Pot life is the process constraint that comes with 2K. The waterborne two-component anti-graffiti systems for artificial leather run a pot life of more than eight hours, applied by anilox roller or doctor blade and dried at 140 C for one minute, which is what makes them workable across a production shift. Published performance for those systems is high scratch resistance, good solvent and chemical resistance, low soiling, and removal of dried permanent marker or ballpoint with a dry cloth. Spray paint is removed without residue in many cases, which is a qualified claim and should be tested against the marking media your own end use sees.

Beyond the crosslinker, the same additive family covers slip additives, lubricants, surface modifiers, wetting and leveling agents, UV absorbers, defoamers, thickeners, and stabilizers. Surface behavior on a coated fabric is usually tuned there rather than by changing binder.

Solventborne or waterborne

Waterborne grades run across all three chemistries, and the range has been converting from solvent to water for years. Where a waterborne version of the finish exists, it is worth asking for at the sample stage even if the line runs solvent today.

A waterborne grade and its solventborne counterpart are not interchangeable on a coating line. Drying behavior, wetting, achievable line speed, blocking, and adhesion all shift, so the same nominal finish behaves differently in the two carriers. Plan the change as a line trial and run both versions of the finish together, so the process question and the performance question get answered in the same trial rather than in two.

Welding, and why it belongs in the specification

Coated fabric is fabricated by welding: high frequency for most PVC tarpaulin and cover work, hot air and hot wedge for larger seams and site work. The lacquer film sits at the interface the weld has to form through, so the finish affects seam strength and the process window.

Grades intended for these applications are formulated to stay weldable, and weldability is retained by grade rather than by chemistry class. That makes it a question to ask up front, with the welding method and the seam performance the finished goods have to meet, and to confirm on a welded sample of your own lacquered material before the grade is locked in.

UV protection under a membrane topcoat

Architectural membrane is the application where the two-layer answer matters. UV degrades the PVC boundary layer underneath the lacquer, which can break the bond between the lacquer and the PVC surface while the topcoat film itself is still intact. The membrane then fails at the interface rather than at the surface you can see.

A UV protection primer under the topcoat filters more than 80 percent of the UV in sunlight while keeping visible-range transparency above 70 percent. The light protection agent is titanium dioxide or zinc oxide depending on grade, with one zinc oxide grade formulated for very high transparency where the appearance of the membrane is part of the design. Single-layer PVDF systems still deliver outdoor durability, UV resistance, and low soiling; the primer is what buys the long service life on a structure that is expected to stay up for decades.

The failure mechanism, the two absorbers, and how service life decides between one layer and two are covered in UV protection primers for PVC architectural membrane.

What to settle before specifying

Six facts close out most selections in one pass.

The substrate. The base fabric and the plasticizer system in the PVC coating, and whether the surface is printed, embossed, or grained.

The end use and the service life. Indoor or outdoor, and how many years the finished goods are sold on. This is what separates acrylic from PVDF more than anything else does.

The finish. Gloss level, hand feel, and the standard it has to match. Gloss reads differently over different base colors, which is why this one is settled on a coated piece of your own material.

The fabrication method. Welding method and seam requirement, plus any sewing, laminating, or printing that follows.

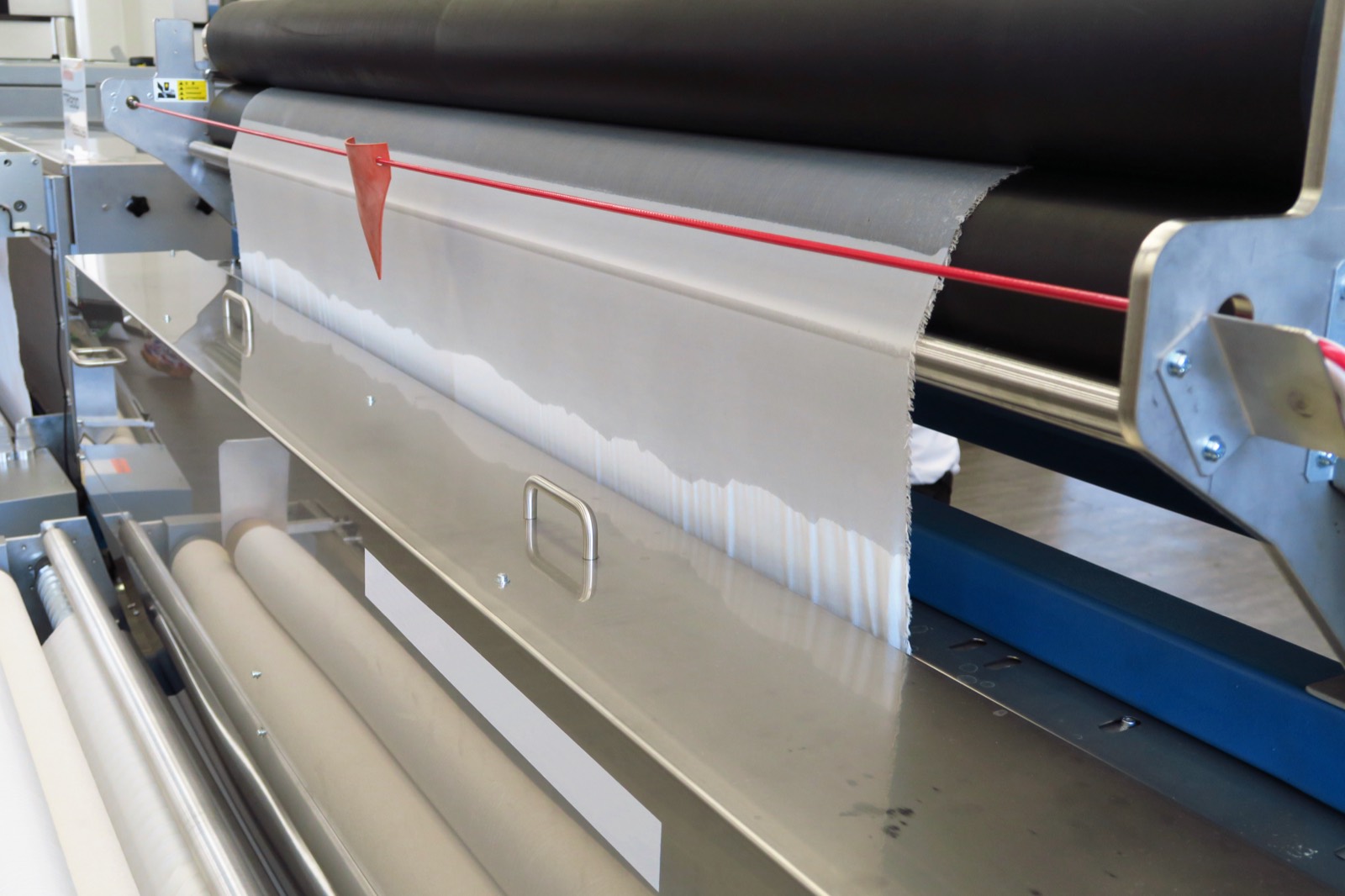

The line. Application method, oven temperature and dwell, line speed, and whether the plant runs solvent, water, or both.

The regulatory position. What the finished article has to declare, and whether SVHC-free is a requirement of the customer or of the market.

What to send us

The fastest route to a short list is the substrate itself. Send a piece of the fabric or film you run, tell us the finish you are after and how the goods are fabricated, and we will have the candidate grade applied to it and returned so you can judge it on your own material. A line trial follows on a stocked or sampled quantity.

P.A.T. Products supplies the ROWA Lack range across the United States, Canada, and Mexico, stocked in North America in working lot sizes for coaters and converters. The full range sits on the coated textile lacquers page, and the manufacturer background is on the ROWA Lack partner page. Technical Data Sheets and Safety Data Sheets are available for every grade, and a Certificate of Analysis ships with each lot.

If the question is the additive rather than the lacquer, that is a different desk: coatings additives covers slip, matting, and adhesion promotion for coating and printing systems.

Frequently asked

Which topcoat chemistry belongs on a PVC-coated fabric?

Acrylic covers most of the market: truck covers, awnings, halls and tents, print media, roofing membrane, and general tarpaulin work, in matt through gloss. Polyurethane is specified where the surface is touched or heard, which means synthetic leather and automotive interior foils, for mar resistance, matt appearance, hand feel, and anti-squeak behavior. PVDF fluoropolymer is specified where outdoor service life and soil resistance drive the decision, which means architectural and tensile membrane, premium pool liners, and foils that have to resist heat yellowing. The sequence is end use first, then required service life, then finish.

Can a lacquered PVC fabric still be high-frequency welded?

In most tarpaulin and cover applications the lacquer has to remain suitable for welding, and grades are formulated for it. The lacquer film sits inside the weld zone, so it changes how the seam behaves and the answer is grade specific rather than chemistry specific. Settle it before the finish is specified: state the welding method, high frequency, hot air, or hot wedge, along with the seam strength the finished goods have to pass, and confirm the grade against a welded sample of your own material.

What does the solids content of a topcoat lacquer tell me?

Solids is the non-volatile fraction, so it sets how much dry film each pass leaves and how much solvent or water the oven has to remove. Topcoats for coated textiles typically run from about 11 percent to about 46 percent depending on family and grade. A higher solids grade builds film faster and puts less load on the oven; a lower solids grade flows out thinner and is easier to apply as a very light finish. Solids on its own does not tell you the coating weight, because the application method and line speed decide that.

Why is the crosslinker specified with the lacquer rather than chosen separately?

A two-component system reaches its stated scratch, solvent, and chemical resistance only with the matching crosslinker at the stated addition level, typically around 2 to 3 percent. The crosslinker is part of the specification, not an accessory to it. It also introduces pot life: a waterborne 2K anti-graffiti system runs a pot life of more than eight hours, which is what makes it workable on a production line, and the mixed material has to be used inside that window.

Is a waterborne topcoat a drop-in replacement for the solventborne version?

No. Drying, wetting, line speed, blocking behavior, and adhesion all shift when the carrier changes, so the same nominal finish in water and in solvent behaves differently on the same line. Plan the change as a line trial rather than a substitution, and run both versions of the finish so the process question and the performance question are answered together.

Specifying a topcoat?

Send the substrate, the end use, the finish you are after, and how the goods are welded. We will recommend a grade, coat a panel on your own material, and quote lead time and minimum quantity with the sample.
